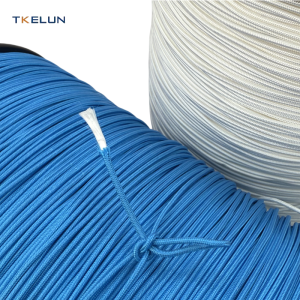

Ultra-high molecular weight polyethylene (UHMWPE) fiber double-braided rope is a high-performance rope that utilizes a twisted or layered structure design to significantly improve dynamic load adaptability.
Its unique feature is derived from the molecular weight of UHMWPE fibers (typically over several million). The following is an analysis of its core features, advantages and disadvantages, and application scenarios:
I. Key Features and Benefits
- Excellent flexibility:
The twisted structure allows for a bending radius of only about 8 times the rope diameter, and can withstand more than 2,000 repeated bends without breaking, making it suitable for high-frequency dynamic loads.
For example, in robot tendon rope applications, its elasticity is superior to that of steel wire ropes, and its weight is only 1/7-1/8 that of steel wire, reducing the burden on the system.
- Lightweight and high strength:
With a density of only 0.97 g/cm³ (lower than water), it can float on water; its tensile strength is more than 1.5 times that of steel wire rope of the same diameter, enabling it to effectively carry heavy loads.
- Wear resistance and corrosion resistance:
Wear resistance is 2-3 times that of ordinary ropes, and it is resistant to seawater, ultraviolet rays, and acid and alkali corrosion, significantly extending its service life in marine environments.
- High heat dissipation efficiency:
The multi-strand gap structure improves heat conduction, with a temperature rise 15%-20% lower than that of a single braided rope, making it suitable for high-frequency friction scenarios.
II. Main Disadvantages
- Limited durability:
After long-term use, gaps between fine wires may cause breakage risks, and the current carrying capacity may decrease to 78% within 5 years, requiring regular replacement.
- High cost:
The processing technology is complex (such as stranding and tin plating), and the initial cost is more than 30% higher than that of single braiding, and maintenance is also more frequent.
- Slightly higher resistance:
The twisted structure increases resistance by 8%-12%, resulting in slightly weaker conductivity compared to single-braided cables.
III. Summary of applicable scenarios
- Recommended applications:
Dynamic load environments such as marine tow ropes, mountain climbing safety ropes, or robot transmission tendon ropes, where flexibility and heat dissipation advantages can be fully utilized. For example, in fishing trawls, it can reduce the escape rate of fish fry and improve operational efficiency.
- Avoidance Scenarios:
High-temperature environments (>70°C) or static heavy-load applications, as its heat resistance is insufficient (melting point 130-136°C) and it offers poor cost-effectiveness.
Double-braided ropes, with their lightweight and high elasticity feature, are gradually replacing traditional materials in marine engineering and high-end equipment. When selecting them, it is necessary to balance dynamic requirements with cost constraints.
